For a long time, I’ve been curious about something. It is a truth I’ve seen casually dropped in textbooks, package documentation, and tweets: random effects and penalized smoothing splines are the same thing. It sounds so profound and enlightened. What does it mean? How are they the same? What deep statistical gnosis was I missing out on?
I have spent months, off and on, trying to understand this equivalence. I can’t give you the full mathematical treatment, but I have the gist of it and I can point you to the equations. In this post, I will try to highlight the connections between the two.
Here are the main takeaways:
 Mixed effects models (a.k.a. hierarchical models or multilevel models) use partial pooling to strike a balance between a grand population mean (complete pooling) and individual group means (no pooling).
 Smoothing splines work by penalizing model coefficients to reduce the model degrees of freedom.
 You can use the computational machinery of one framework to estimate the other.
Sadly, I feel like my career has peaked with the creation of this meme pic.twitter.com/5ilRFonsy7
— Eric Pedersen (@ericJpedersen) August 12, 2020
Mixed model review
Let’s review what these things means. Mixed effects models, apparently the main focus of this blog over the years, are used to estimate “random” or “varying” effects. Here is the classic equation set up:
\[\mathbf{y} = \mathbf{X\beta} + \mathbf{Zb} + \mathbf{\epsilon} \\ \mathbf{b} \sim \textsf{Normal}(0, \sigma_b) \\ \mathbf{\epsilon} \sim \textsf{Normal}(0, \sigma_y) \\ \mathbf{X}: \textrm{fixed effects model matrix} \\ \mathbf{Z}: \textrm{random effects model matrix} \\ \sigma_b, \sigma_y : \textrm{variance components} \\ \sigma_b : \textrm{where the magic happens} \\\]The magic here is the σ_{b}, as it ties all of the individual effects in b under a common distribution. If σ_{b} were replaced with a fixed number like 10, then all of the effects in b would be independent and unaware of each other: There would be no pooling of information between the groups. If we remove it from the model—replace σ_{b} with 0, so to speak—then all the group variability is ignored, and there is complete pooling of information into a single mean effect. With σ_{b} all the groups can contribute information about the distribution of plausible effects, and so, there can be partial pooling of information between groups.
Consider the radon
dataset example from Gelman and Hill
(2007). Radon measurements were taken in Minnesota
counties. We would like to estimate the average radon measurement for
each county. We have a repeated measures situation, and some counties
have more observations than others. We use a Bayesian mixed effects
model with brms to estimate a
population distribution of county estimates, and the countylevel
estimates are randomly varying effects. They are drawn from a random
distribution, the scale of which we estimate from the data.
library(tidyverse)
theme_set(theme_grey(base_size = 14))
library(brms)
radon < rstanarm::radon
b_radon < brm(
log_radon ~ 1 + (1  county),
radon,
family = gaussian,
file = "_caches/20210226radon",
backend = "cmdstanr",
refresh = 0
)
b_radon
#> Family: gaussian
#> Links: mu = identity; sigma = identity
#> Formula: log_radon ~ 1 + (1  county)
#> Data: radon (Number of observations: 919)
#> Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
#> total postwarmup draws = 4000
#>
#> GroupLevel Effects:
#> ~county (Number of levels: 85)
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> sd(Intercept) 0.30 0.05 0.22 0.40 1.00 1708 2355
#>
#> PopulationLevel Effects:
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> Intercept 1.35 0.05 1.25 1.45 1.00 3128 3435
#>
#> Family Specific Parameters:
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> sigma 0.77 0.02 0.73 0.80 1.00 6203 3067
#>
#> Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
#> and Tail_ESS are effective sample size measures, and Rhat is the potential
#> scale reduction factor on split chains (at convergence, Rhat = 1).
Here sd(Intercept)
corresponds to σ_{b}.

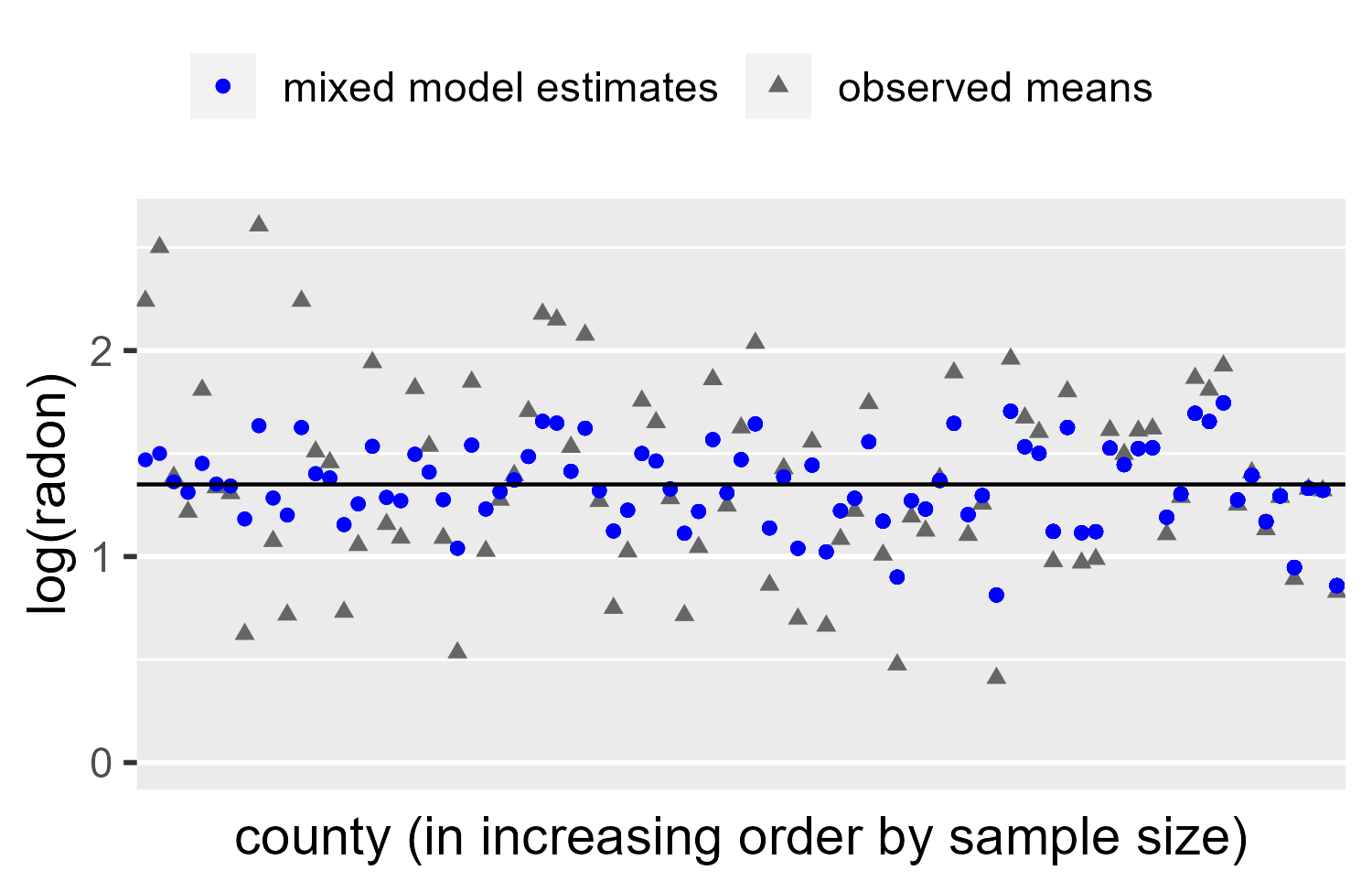

We can plot the observed county means alongside the model estimated ones. First, I do some wrangling so that the difference between observed means and estimated means are computed for use later on.
radon_aug < radon %>%
# add ns and means
group_by(county) %>%
mutate(
observed_mean = mean(log_radon),
county_n = n()
) %>%
ungroup() %>%
# add fitted values
tidybayes::add_epred_draws(b_radon) %>%
mutate(
observed_minus_model = observed_mean  .epred
) %>%
# summarize fitted values
ggdist::median_qi(.epred, observed_minus_model)
radon_aug$type < "mixed model estimates"
radon$type < "observed means"
ggplot(radon_aug) +
aes(
x = fct_rev(fct_infreq(county)),
y = log_radon,
color = type,
shape = type
) +
stat_summary(data = radon, fun = mean, geom = "point") +
geom_point(aes(y = .epred)) +
# Want to include y = 0 in the figure
geom_blank(aes(y = 0)) +
labs(
x = "county (in increasing order by sample size)",
y = "log(radon)"
) +
geom_hline(yintercept = fixef(b_radon)[1]) +
scale_color_manual(values = c("blue", "grey40")) +
labs(color = NULL, shape = NULL) +
theme(
axis.text.x = element_blank(),
axis.ticks.x = element_blank(),
panel.grid.major.x = element_blank(),
panel.grid.minor.x = element_blank(),
legend.title = element_blank(),
legend.position = "top",
legend.direction = "horizontal",
legend.justification = "left",
)
We see a classic example of partial pooling. First note that model
estimates (blue circles) are less variable: None go above y = 2 and
only four go below y = 1. For counties with many observations (right
side), the estimated mean is hardly adjusted. There is less of a visual
gap between the observed mean and estimated mean. For counties with less
data (left side), the estimate is pulled towards the population mean
(Intercept
in the summary above).
The following plot shows difference between the observed means and the estimated means, subtracting the grey triangles from the blue squares in the plot above.
radon_aug %>%
ungroup() %>%
distinct(county, county_n, observed_minus_model) %>%
ggplot() +
aes(x = county_n, y = observed_minus_model) +
geom_point(alpha = .5) +
labs(
x = "Number of observations in county",
y = "Observed mean  estimated mean"
)
The contention behind the smooths = random effects claim is that what we just did is a case of smoothing. These random effects are, in a way, smoothed fixed effects.
The function
random()
can be seen as a smoother for use with factors ingamlss()
. It allows the fitted values for a factor predictor to be shrunk towards the overall mean […]— GAMLSS documentation describing a random intercept as a smoother
But what’s smoothing?
Now let’s walk through a generalized additive model in mgcv to demonstrate a penalized smoothing spline. That was a mouth full, but basically additive models are like the smoothing expansion pack for the standard linear model. We’re still doing regression, but we have some new syntax and our models can do nonlinear relationships more easily now.
I will walk through a basic example of how a spline’s basis functions are weighted to approximate a nonlinear trend, but this is not going to be a full tutorial. Other people have made video introductions to additive models or the mgcv package. I first learned them from a tutorial for linguists and then from the mgcv textbook, but there are other resources online.
We use the mcycle
dataset which gives the head
acceleration in a simulated motorcycle accident. We are going to fit a
model, plot the smooth from it, and then we are going to work through
what the model did.
library(mgcv)
mcycle < MASS::mcycle %>%
tibble::rowid_to_column()
# Fit the model
gam_20 < gam(
accel ~ 1 + s(times, bs = "cr", k = 20),
data = mcycle,
method = "REML"
)
mcycle$.fitted < fitted(gam_20)
ggplot(mcycle) +
aes(x = times, y = accel) +
geom_point(alpha = .5) +
geom_line(aes(y = .fitted), color = "blue") +
labs(x = "time after impact [ms]", y = "acceleration [g]")
So what happened here? We will cover it visually.
Splines are the sums of weighted wiggles
Let’s look at the regression formula.
formula(gam_20)
#> accel ~ 1 + s(times, bs = "cr", k = 20)
We told gam()
to estimate accel
using an intercept term and a smooth
term on the time predictor (s(times, ...)
). Specifically, we created
our smooth using a cubic regression spline basis (bs = "cr"
) with k
= 20
 1 curves. Our model is
estimating a function by adding up smaller components called basis
functions, and the space that defines those components is the basis.
These basis functions are weighted and summed together to produce a
smooth trend called a spline. The name splines is inspired by
drafting splines which are flexible strips of wood that can be weighted
and anchored in place to make a nice curve.
To reiterate, conceptually, we are decomposing the times
predictor
into a bunch of individual wiggly lines (basis functions), and these are
weighted and summed together to approximate some nonlinear function. My
post on orthogonal polynomials
illustrates the same principle but with polynomial basis functions.
Richard McElreath provides a friendly 30minute introduction
splines in a Bayesian model in his Statistical
Rethinking course. One line I appreciate from his description is that
with splines, we replace a predictor variable, like times
, with a set
of “synthetic” predictor variables.
An easy way to pull the wiggles is to use the model matrix. We have 20 columns for the intercept and 19 basis functions.
model.matrix(gam_20) %>%
as_tibble() %>%
print(width = 72)
#> # A tibble: 133 × 20
#> `(Intercept)` `s(times).1` `s(times).2` `s(times).3` `s(times).4`
#> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 1 0.143 0.165 0.154 0.311
#> 2 1 0.0317 0.193 0.133 0.293
#> 3 1 0.292 0.270 0.0716 0.242
#> 4 1 0.492 0.309 0.0357 0.208
#> 5 1 0.669 0.332 0.00603 0.175
#> 6 1 0.933 0.0792 0.0455 0.0280
#> 7 1 0.808 0.278 0.0969 0.0106
#> 8 1 0.730 0.383 0.122 0.00387
#> 9 1 0.286 0.851 0.182 0.00169
#> 10 1 0.123 0.957 0.143 0.0130
#> # … with 123 more rows, and 15 more variables: `s(times).5` <dbl>,
#> # `s(times).6` <dbl>, `s(times).7` <dbl>, `s(times).8` <dbl>,
#> # `s(times).9` <dbl>, `s(times).10` <dbl>, `s(times).11` <dbl>,
#> # `s(times).12` <dbl>, `s(times).13` <dbl>, `s(times).14` <dbl>,
#> # `s(times).15` <dbl>, `s(times).16` <dbl>, `s(times).17` <dbl>,
#> # `s(times).18` <dbl>, `s(times).19` <dbl>
To visualize the matrix, I am using a helper function from my personal R
package for plotting matrices in ggplot2. What we see is times
on the
x axis and one line for the intercept and for each of the basis functions.
# Helper function to plot the lines of a matrix
ggmatplot < tjmisc::ggmatplot
# Helper function to label on a theme_grey() plot
annotate_grey < tjmisc::annotate_label_grey
ggmatplot(cbind(mcycle$times, model.matrix(gam_20)), x_axis_column = 1) +
annotate_grey("intercept", 0, 1.02, size = 5) +
annotate_grey("individual\nbasis\nfunctions", 0, .16, size = 5) +
expand_limits(y = 1.2) +
labs(x = "time [ms]", title = NULL)
Now we can weight these by multiplying by the model coefficients. Here
we use the diag(coef())
trick to prevent the weighted predictors from
being summed together.
weighted_coefs < model.matrix(gam_20) %*% diag(coef(gam_20))
ggmatplot(cbind(mcycle$times, weighted_coefs), x_axis_column = 1) +
annotate_grey("weighted intercept", 35, 40, size = 5) +
annotate_grey("weighted basis functions", 0, 26, size = 5) +
labs(x = "time [ms]", title = NULL)
We can see the two main inflections points in the dataset now. The basis functions around 20 ms and 30 ms become very active in order to push the spline away from 0 at those times.
If we sum the lines together, we get the regression line (the intercept plus the smoothing spline).
ggmatplot(
cbind(mcycle$times, weighted_coefs),
x_axis_column = 1,
n_colors = 1
) +
stat_summary(
aes(group = 1),
color = "maroon",
fun = sum,
geom = "line",
size = 1.5
) +
annotate_grey("sum", 10, 70, size = 5, color = "maroon") +
labs(x = "time [ms]", title = NULL)
Our plots so far demonstrate regression with basis functions, but smoothing splines go one step further: They penalize wiggliness to prevent overfitting. The idea is as follows: For the above demonstration, we chose a 20dimension spline basis (19 curves because 1 is removed for identifiability, apparently). But where did that number 20 come from? Thin air. What if we specified a dimension of 50? That’s 50 predictors (1 intercept and 49 basis functions). Isn’t it really easy to overfit the data with this approach?
Well, let’s look at a 50dimension version.
gam_50 < gam(
accel ~ s(times, bs = "cr", k = 50),
data = mcycle,
method = "REML"
)
mcycle$.fitted50 < fitted.values(gam_50)
ggplot(mcycle) +
aes(x = times, y = accel) +
geom_point(alpha = .5) +
geom_line(aes(y = .fitted, color = "20"), size = 1) +
geom_line(aes(y = .fitted50, color = "50"), size = 1) +
labs(
x = "time after impact [ms]",
y = "acceleration [g]",
color = "Dimension"
)
Huh, they hardly look any different. There is no overfitting. What’s going on? I already said it. Wiggliness is being penalized.
Fit versus smoothness
Behind the scenes, the model is trying to balance two competing goals. On the one hand we want to maximize the fit to the data. In linear regression, this goal amounts to minimizing the sum of squared errors. On the other hand, we want to minimize wiggliness (overfitting). In penalized smoothing splines, this is done by first specifying a penalty matrix that defines wiggliness for that spline basis. These two features are pitted against each other in the following equation:
\[\begin{align*} \mathbf{\hat{β}} &= \operatorname{arg min}_\mathbf{β}\ \\mathbf{y} − \mathbf{Xβ}\^2 + \lambda\mathbf{β}^\intercal\mathbf{Sβ} \\ &\ \text{(want }\mathbf{\hat{β}} \text{ that minimizes fitting error and wiggliness)}\\ \\mathbf{y} − \mathbf{Xβ}\^2 &: \text{sum of squared errors (minimize error to improve fit)} \\ \lambda\beta^\intercal\mathbf{Sβ} &: \text{wiggliness penalty} \\ \mathbf{Xβ} &: \text{spline basis times weights} \\ \mathbf{S} &: \text{penalty matrix (defines wiggliness for the spline)} \\ \lambda &: \text{smoothness parameter (increase to make penalty stronger)} \\ \end{align*}\]Don’t worry about the exact mathematics here: Just appreciate that error is now paired with wiggliness, and wiggliness is controlled by a penalty matrix S and a smoothness parameter λ. And yes, wiggliness is the technical term. I based the equations from Simon Wood’s slides, which use the phrase “fitwiggliness tradeoff”.
For our purposes, we won’t worry too much about the penalty matrix. I’ll briefly describe it. For this model, wiggliness is defined by using the second derivative of the estimated spline. The first derivative measures the slope/steepness of the curve along x, and the second derivatives measures how much the slope/steepness changes with x. Thus, wiggliness is the change in slope, and the penalty matrix provides penalties for each of the model coefficients related to this wiggliness. The excellent gratia will plot the penalty matrix as a heat map. x and y represent model coefficients (weights for the basis functions), so along the main diagonal we see a penalty applied to each coefficient. In the two offdiagonals, we see neighboring basis functions have their weights jointly unpenalized or penalized.
gam_20 %>%
gratia::penalty() %>%
gratia::draw()
The stiffest penalties are meted out to the 5th and 6th basis functions, I think because these two basis functions cover the most rows in the dataset, but I’m not 100% confident in that explanation.
To see the overfitting in action, we can disable the smoothing penalty
in the above splinecomparison plot by used fixed (fx = TRUE
) regression
splines. Now, the model’s main goal is to minimize the error, and
the 50dimension spline basis gives the model many, many degrees of freedom.
gam_20_fx < gam(
accel ~ s(times, bs = "cr", k = 20, fx = TRUE),
data = mcycle,
method = "REML"
)
gam_50_fx < gam(
accel ~ s(times, bs = "cr", k = 50, fx = TRUE),
data = mcycle,
method = "REML"
)
mcycle$.fitted20_fx < fitted.values(gam_20_fx)
mcycle$.fitted50_fx < fitted.values(gam_50_fx)
ggplot(mcycle) +
aes(x = times, y = accel) +
geom_point(alpha = .5) +
geom_line(aes(y = .fitted20_fx, color = "20"), size = 1) +
geom_line(aes(y = .fitted50_fx, color = "50"), size = 1) +
labs(
x = "time after impact [ms]",
y = "acceleration [g]",
color = "Dimension"
)
Thus, when we disable the penalty, the 50dimension splines is free to wiggle all over the place.
How much smoothing happened: Effective degrees of freedom
The smoothing parameter, λ, is a hyperparameter. It controls the spline coefficients (basis function weights), and it is estimated from the data. We can set the λ manually and crank it up way, way up. In this case, the model tries to find the least wiggly curve that decreases modeling error: A straight line.
gam_20_sp < gam(
accel ~ s(times, bs = "cr", k = 20, sp = 10000000),
data = mcycle,
method = "REML"
)
mcycle$.fitted20_sp < fitted.values(gam_20_sp)
ggplot(mcycle) +
aes(x = times, y = accel) +
geom_point(alpha = .5) +
geom_line(aes(y = .fitted, color = "estimated"), size = 1) +
geom_line(aes(y = .fitted20_fx, color = "no smoothing"), size = 1) +
geom_line(aes(y = .fitted20_sp, color = "10,000,000"), size = 1) +
labs(
x = "time after impact [ms]",
y = "acceleration [g]",
color = expression(lambda)
)
We need some way to talk about how much smoothing took place. On the one hand, we might treat each basis function as an independent predictor that uses up a full degree of freedom in fitting the curve. On the other hand, we might penalize the basis function weights so much that they produce a straight line, and thus, the batch of predictors effectively acts just like a single predictor variable would. That is, they are effectively estimating a curve that has just 1degreeoffreedom’s worth of action in it. And indeed this is how mgcv describes the smoothness of the models: It reports the effective (or estimated) degrees of freedom (EDFs) behind each smooth.
If we look at the model summary, we see that our 20dimension basis
smooth has an EDF of 11.78 (see edf
under Approximate significance of
smooth terms
).
summary(gam_20)
#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> accel ~ 1 + s(times, bs = "cr", k = 20)
#>
#> Parametric coefficients:
#> Estimate Std. Error t value Pr(>t)
#> (Intercept) 25.546 1.956 13.06 <2e16 ***
#>
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Approximate significance of smooth terms:
#> edf Ref.df F pvalue
#> s(times) 11.78 13.97 33.93 <2e16 ***
#>
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Rsq.(adj) = 0.782 Deviance explained = 80.1%
#> REML = 616.01 Scale est. = 509.01 n = 133
Similarly, our 50dimension basis smooth has only 12.81 effective degrees of freedom, but the unpenalized version uses all 49 of its basis function curves and uses 49 degrees of freedom.
gam_50
#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> accel ~ s(times, bs = "cr", k = 50)
#>
#> Estimated degrees of freedom:
#> 12.8 total = 13.81
#>
#> REML score: 616.068
gam_50_fx
#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> accel ~ s(times, bs = "cr", k = 50, fx = TRUE)
#>
#> Estimated degrees of freedom:
#> 49 total = 50
#>
#> REML score: 403.4616
The big trick: Turn λ into a random effect variance in a mixed model
Okay, so far, here’s what we have:
 A spline decomposes a predictor into a number of wiggly basis functions.
 A penalized spline adds a penalty term to the model to reduce wiggliness.
 This penalty shrinks model coefficients so that they use a smaller number of degrees of freedom used by the model.
 The amount of smoothing is controlled by a hyperparameter λ.
We saw another hyperparameter earlier on in this post whose job was to pull individual parameter estimates closer to 0: σ_{b}. Both of these hyperparameters are estimated from the data and perform shrinkage on a batch of related coefficients (random effects or basis function weights).
So, here’s the big thing… If you do a bunch of linear algebra (as in slide 7 here or the Appendix in Wood, 2004), you can express the smooth as a mixed model:
\[\begin{align*} \mathbf{y} &= \mathbf{X}\mathbf{\beta} + \mathbf{Zb} + \mathbf{\epsilon} \\ \mathbf{b} &\sim \textsf{Normal}(0, \sigma/\lambda) \\ \mathbf{\epsilon} &\sim \textsf{Normal}(0,\sigma) \\ \mathbf{X}, \mathbf{Z} &: \textrm{matrices from transforming spline and penalty matrices} \\ \mathbf{X} &: \textrm{unpenalized (fixed) effect model matrix} \\ \mathbf{Z} &: \textrm{penalized (random) effects model matrix} \\ \lambda &: \textrm{smoothness parameter} \\ \sigma &: \textrm{residual variance component} \\ \end{align*}\]And right there, on the second line, we see the mixed effects magic again: σ/λ = σ_{b}: Model coefficients are related under a common distribution so that they can share information with each other. We can smuggle penalized smooths into the mixed effects framework.
random effects and splines are _the same_ thing. See also https://t.co/LgZTzZimH0
— DavidLawrenceMiller (@millerdl) March 28, 2017
So… you can turn splines into mixed models?
Yes. What this means is that we can use nlme or
lme4 to
estimate a smooth as a mixed effects model. mgcv provides this feature
in its aptly named smooth2random()
function.
Let’s walk through what happens to our spline basis along the way.
First, let’s set up our cubic regression spline basis, manually outside of a regression formula.
basis_cr < smoothCon(
s(times, k = 20, bs = "cr"),
data = mcycle,
absorb.cons = TRUE
)
p1 < ggmatplot(basis_cr[[1]]["X"][[1]]) +
labs(title = "original spline basis")
p2 < gratia::penalty(basis_cr[[1]]) %>%
gratia::draw() +
theme(
panel.background = element_blank(),
axis.text.x = element_text(angle = 90, vjust = .5)
) +
guides(fill = "none") +
labs(title = "penalty matrix")
# for combining plots together
library(patchwork)
p1 + p2
But we are going to reparameterize model so that the penalty matrix is
just a diagonal of 1s using diagonal.penalty = TRUE
. Now, our basis is
no longer a row of pointy curves.
# Construct a smoothing basis outside of a model
basis_cr_diag < smoothCon(
s(times, k = 20, bs = "cr"),
data = mcycle,
absorb.cons = TRUE,
diagonal.penalty = TRUE
)
p1b < ggmatplot(basis_cr_diag[[1]]["X"][[1]]) +
labs(title = "natural parameterization")
p2b < gratia::penalty(basis_cr_diag[[1]]) %>%
gratia::draw() +
theme(
panel.background = element_blank(),
axis.text.x = element_text(angle = 90, vjust = .5)
) +
guides(fill = "none") +
labs(title = "penalty matrix")
p1b + p2b
If my reading of Wood’s textbook is correct, this is the “natural”
parameterization of a singlevariable smoothing spline. (The source code
for smoothCon()
in mgcv also calls an internal function called
nat.param()
so I think I am the right track here.)
Take a look at F19 x F19 in the above plot. It snuck past me at first,
but this basis function is not penalized. In a mixed effect model, an
unpenalized parameter is a fixed effect. Thus, when smooth2random()
creates a onecolumn fixed effects matrix and stores the remaining curves
in a random effects matrix, we find that the unpenalized column is the
fixed effects column.
re < smooth2random(basis_cr_diag[[1]], "", type = 2)
# Confirm that the fixed effect column and the
# unpenalized column are the same
unpenalized_column < basis_cr_diag[[1]]["X"][[1]][, 19, drop = FALSE]
all(unpenalized_column == re$Xf)
#> [1] TRUE
p1c < ggmatplot(re$Xf) +
labs(title = "fixed effects matrix") +
expand_limits(y = c(30, 80))
p2c < ggmatplot(re$rand$Xr) +
labs(title = "random effects matrix") +
expand_limits(y = c(30, 80))
p1c + p2c
I still don’t understand the transformation (that takes place from the
original basis matrix) very well myself, and I probably won’t be
converting smoothing bases into mixed effects model matrices and fitting
them with lme4 anytime soon.
gamm4 fits
its smooths with lme4, but by the looks of it, it’s not simply a
matter of calling of lmer()
. Still, this mixed model
reparameterization is useful to know about because of the following
fact.
This point seems obscure, but it is what brms uses!
What happens when we fit a smooth in brms? We are fitting a mixed effects model.
b_gam_20 < brm(
accel ~ s(times, bs = "cr", k = 20),
data = mcycle,
family = gaussian,
file = "_caches/20210226mcycle20",
backend = "cmdstanr",
refresh = 0
)
summary(b_gam_20)
#> Family: gaussian
#> Links: mu = identity; sigma = identity
#> Formula: accel ~ s(times, bs = "cr", k = 20)
#> Data: mcycle (Number of observations: 133)
#> Draws: 4 chains, each with iter = 2000; warmup = 1000; thin = 1;
#> total postwarmup draws = 4000
#>
#> Smooth Terms:
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> sds(stimes_1) 4.96 1.19 3.17 7.81 1.00 1007 1598
#>
#> PopulationLevel Effects:
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> Intercept 25.44 2.00 29.24 21.46 1.00 5627 2802
#> stimes_1 1.65 0.34 0.98 2.31 1.00 4744 2952
#>
#> Family Specific Parameters:
#> Estimate Est.Error l95% CI u95% CI Rhat Bulk_ESS Tail_ESS
#> sigma 22.79 1.50 20.09 25.91 1.00 3932 2740
#>
#> Draws were sampled using sample(hmc). For each parameter, Bulk_ESS
#> and Tail_ESS are effective sample size measures, and Rhat is the potential
#> scale reduction factor on split chains (at convergence, Rhat = 1).
You see sds(times_1)
? That’s the variance of smooth weights. You see
stimes_1
? That the single fixed effects term (re$Xf
) in the code
above. I’m pretty sure about this because I learned smooth2random()
from studying the brms source code.
Indeed, if we look at the actual Stan code used to fit the model, we see a mixed effects model. I suggest you only skim this code.
b_gam_20$model
// generated with brms 2.17.0
functions {
}
data {
int<lower=1> N; // total number of observations
vector[N] Y; // response variable
// data for splines
int Ks; // number of linear effects
matrix[N, Ks] Xs; // design matrix for the linear effects
// data for spline s(times, bs = "cr", k = 20)
int nb_1; // number of bases
array[nb_1] int knots_1; // number of knots
// basis function matrices
matrix[N, knots_1[1]] Zs_1_1;
int prior_only; // should the likelihood be ignored?
}
transformed data {
}
parameters {
real Intercept; // temporary intercept for centered predictors
vector[Ks] bs; // spline coefficients
// parameters for spline s(times, bs = "cr", k = 20)
// standarized spline coefficients
vector[knots_1[1]] zs_1_1;
real<lower=0> sds_1_1; // standard deviations of spline coefficients
real<lower=0> sigma; // dispersion parameter
}
transformed parameters {
// actual spline coefficients
vector[knots_1[1]] s_1_1;
real lprior = 0; // prior contributions to the log posterior
// compute actual spline coefficients
s_1_1 = sds_1_1 * zs_1_1;
lprior += student_t_lpdf(Intercept  3, 13.3, 35.6);
lprior += student_t_lpdf(sds_1_1  3, 0, 35.6)
 1 * student_t_lccdf(0  3, 0, 35.6);
lprior += student_t_lpdf(sigma  3, 0, 35.6)
 1 * student_t_lccdf(0  3, 0, 35.6);
}
model {
// likelihood including constants
if (!prior_only) {
// initialize linear predictor term
vector[N] mu = Intercept + rep_vector(0.0, N) + Xs * bs + Zs_1_1 * s_1_1;
target += normal_lpdf(Y  mu, sigma);
}
// priors including constants
target += lprior;
target += std_normal_lpdf(zs_1_1);
}
generated quantities {
// actual populationlevel intercept
real b_Intercept = Intercept;
}
Okay, that’s a lot. But let me highlight and translate the key part of it.
\[\begin{align*} \mathbf{S} &: \texttt{s_1_1} & \texttt{// actual spline coefficients}\\ \mathbf{\sigma} &: \texttt{sds_1_1} & \texttt{// standard deviations of spline coefficients}\\ \mathbf{Z} &: \texttt{zs_1_1} & \texttt{// standardized spline coefficients}\\ \mathbf{S} &= \sigma \mathbf{Z} & \texttt{s_1_1 = sds_1_1 * zs_1_1}; \\ \mathbf{Z} &\sim \textsf{Normal}(0, 1) & \texttt{target += std_normal_lpdf(zs_1_1);}\\ \mathbf{\sigma} &\sim \textsf{StudentT}(3, 0, 35.6) & \texttt{lprior += student_t_lpdf(sds_1_1  3, 0, 35.6) ...}\\ \end{align*}\]The spline coefficients start as z scores, drawn from normal distribution with mean 0 and a standard deviation of 1. They are then scaled by σ, a scaling factor. This scaling factor acts as the hyperparameter that is learned from the data. This formulation of a mixed model is call the noncentered parameterization. It’s one of those topics you eventually run into in the Stanverse. Richard McElreath does a friendly tour of it as a matter of algebra. For a deeper dive, Michael Betancourt covers the topic in the context of debugging degenerate posteriors.
We can see completely analogous code in the Bayesian radon model above. I’ll just show the relevant part:
b_radon$model
...
parameters {
...
vector<lower=0>[M_1] sd_1; // grouplevel standard deviations
array[M_1] vector[N_1] z_1; // standardized grouplevel effects
}
transformed parameters {
vector[N_1] r_1_1; // actual grouplevel effects
r_1_1 = sd_1[1] * z_1[1];
real lprior = 0; // prior contributions to the log posterior
lprior += student_t_lpdf(sd_1  3, 0, 2.5)
 1 * student_t_lccdf(0  3, 0, 2.5);
}
model {
...
target += std_normal_lpdf(z_1[1]);
}
Simple random effects are category smoothers
One consequence of this relationship is that you can walk this relation
backwards: You can fit a simple random effects using a basis matrix and
penalty matrix. Indeed, mgcv provides a random effects ("re"
)
smoother basis so we can estimate our mixed model from
above using a smooth.
gam_radon < gam(
log_radon ~ 1 + s(county, bs = "re"),
data = radon,
method = "REML"
)
In this case, the basis matrix is just a single indicator variable for county.
ggmatplot(model.matrix(gam_radon)[, 1])
(Yikes, that one stings the eyes!)
The penalty matrix is a diagonal as each county effect is equally penalized.
gam_radon %>%
gratia::penalty() %>%
gratia::draw() +
theme(axis.text = element_blank())
mgcv knows about how σ/λ = σ_{b} and it will provide the
random effect variance estimate for us with gam.vcomp()
(variance
components):
gam.vcomp(gam_radon)
#>
#> Standard deviations and 0.95 confidence intervals:
#>
#> std.dev lower upper
#> s(county) 0.2976671 0.2202676 0.4022639
#> scale 0.7660696 0.7304109 0.8034692
#>
#> Rank: 2/2
Which closely matches the estimates from the Bayesian model above:
b_radon %>%
posterior_summary(
variable = c("sd_county__Intercept", "sigma")
) %>%
round(3)
#> Estimate Est.Error Q2.5 Q97.5
#> sd_county__Intercept 0.304 0.048 0.215 0.404
#> sigma 0.767 0.018 0.732 0.803
What I think is the coolest feature of random intercepts as smooths is what the effective degrees of freedom tells us:
nlevels(radon$county)
#> [1] 85
summary(gam_radon)
#>
#> Family: gaussian
#> Link function: identity
#>
#> Formula:
#> log_radon ~ 1 + s(county, bs = "re")
#>
#> Parametric coefficients:
#> Estimate Std. Error t value Pr(>t)
#> (Intercept) 1.350 0.047 28.72 <2e16 ***
#>
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Approximate significance of smooth terms:
#> edf Ref.df F pvalue
#> s(county) 39.57 84 1.573 <2e16 ***
#>
#> Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Rsq.(adj) = 0.126 Deviance explained = 16.4%
#> REML = 1092.4 Scale est. = 0.58686 n = 919
The data have 85 counties, but there is effectively 39.5 counties worth of parameters here. For what it’s worth, we find a similar number when we ask brms to use the LOO method to estimate the effective number of parameters from its model.
loo(b_radon)
#>
#> Computed from 4000 by 919 loglikelihood matrix
#>
#> Estimate SE
#> elpd_loo 1083.6 28.8
#> p_loo 44.5 4.1
#> looic 2167.1 57.5
#>
#> Monte Carlo SE of elpd_loo is 0.1.
#>
#> Pareto k diagnostic values:
#> Count Pct. Min. n_eff
#> (Inf, 0.5] (good) 916 99.7% 301
#> (0.5, 0.7] (ok) 3 0.3% 360
#> (0.7, 1] (bad) 0 0.0% <NA>
#> (1, Inf) (very bad) 0 0.0% <NA>
#>
#> All Pareto k estimates are ok (k < 0.7).
#> See help('paretokdiagnostic') for details.
Here p_loo
is the effective number of parameters from a leaveoneout
crossvalidation method. It’s around 45. Our mgcv model has around 41.6
parameters (39.6 from the smooth plus intercept and sigma). These two
parameter estimating methods are unrelated (as far as I
know) related (thanks Avi Vehtari), and they
both seem to telling us something similar about how much information in
county
variable we have after partially pooling down the model
parameters.
For a deeper dive on random effects, Gavin Simpson recently wrote about how to use mgcv for random effects, so I encourage readers to look at that post.
Okay, why are you telling me this?
The purpose of this post was to demystify the connection between penalized smooths and mixed effects models. Formally, it all boils down to a hyperparameter that penalizes model coefficients (or pools information) so that the model uses a smaller number of effective parameters. This connection enriches my understanding of the two kinds of models. A bycounty random intercept is a category smoother. We can estimate a smooth by putting a prior on the variance of the basis function weights (provided that we incorporate the penalty matrix somehow). It’s wonderful.
Random effects are funny things. We are first taught them in a repeated measures framework as a way to handle a problem in the data (nonindependence in clustered units). But they are so much more. To use a Richard McElreath phrase, they provide an “adaptive regularizing prior”: Something that constrains our estimates to reduce overfitting but is actively learned from the data. Hodge and Clayton (2011) outline this problem between repeatedmeasures random effects and pooling/smoothing random effects in their paper Random Effects Old and New, and I think it’s worth remembering this distinction when we use the phrase “random effects”.
Last knitted on 20220527. Source code on GitHub.^{1}

.session_info #> ─ Session info ─────────────────────────────────────────────────────────────── #> setting value #> version R version 4.2.0 (20220422 ucrt) #> os Windows 10 x64 (build 22000) #> system x86_64, mingw32 #> ui RTerm #> language (EN) #> collate English_United States.utf8 #> ctype English_United States.utf8 #> tz America/Chicago #> date 20220527 #> pandoc NA #> stan (rstan) 2.21.0 #> stan (cmdstanr) 2.29.2 #> #> ─ Packages ─────────────────────────────────────────────────────────────────── #> ! package * version date (UTC) lib source #> abind 1.45 20160721 [1] CRAN (R 4.2.0) #> arrayhelpers 1.10 20200204 [1] CRAN (R 4.2.0) #> assertthat 0.2.1 20190321 [1] CRAN (R 4.2.0) #> backports 1.4.1 20211213 [1] CRAN (R 4.2.0) #> base64enc 0.13 20150728 [1] CRAN (R 4.2.0) #> bayesplot 1.9.0 20220310 [1] CRAN (R 4.2.0) #> boot 1.328 20210503 [2] CRAN (R 4.2.0) #> bridgesampling 1.12 20210416 [1] CRAN (R 4.2.0) #> brms * 2.17.0 20220413 [1] CRAN (R 4.2.0) #> Brobdingnag 1.27 20220203 [1] CRAN (R 4.2.0) #> broom 0.8.0 20220413 [1] CRAN (R 4.2.0) #> callr 3.7.0 20210420 [1] CRAN (R 4.2.0) #> cellranger 1.1.0 20160727 [1] CRAN (R 4.2.0) #> checkmate 2.1.0 20220421 [1] CRAN (R 4.2.0) #> cli 3.3.0 20220425 [1] CRAN (R 4.2.0) #> cmdstanr 0.5.2 20220501 [1] Github (standev/cmdstanr@e9c12be) #> coda 0.194 20200930 [1] CRAN (R 4.2.0) #> codetools 0.218 20201104 [2] CRAN (R 4.2.0) #> colorspace 2.03 20220221 [1] CRAN (R 4.2.0) #> colourpicker 1.1.1 20211004 [1] CRAN (R 4.2.0) #> crayon 1.5.1 20220326 [1] CRAN (R 4.2.0) #> crosstalk 1.2.0 20211104 [1] CRAN (R 4.2.0) #> DBI 1.1.2 20211220 [1] CRAN (R 4.2.0) #> dbplyr 2.1.1 20210406 [1] CRAN (R 4.2.0) #> digest 0.6.29 20211201 [1] CRAN (R 4.2.0) #> distributional 0.3.0 20220105 [1] CRAN (R 4.2.0) #> dplyr * 1.0.9 20220428 [1] CRAN (R 4.2.0) #> DT 0.23 20220510 [1] CRAN (R 4.2.0) #> dygraphs 1.1.1.6 20180711 [1] CRAN (R 4.2.0) #> ellipsis 0.3.2 20210429 [1] CRAN (R 4.2.0) #> emmeans 1.7.41 20220515 [1] CRAN (R 4.2.0) #> estimability 1.3 20180211 [1] CRAN (R 4.2.0) #> evaluate 0.15 20220218 [1] CRAN (R 4.2.0) #> fansi 1.0.3 20220324 [1] CRAN (R 4.2.0) #> farver 2.1.0 20210228 [1] CRAN (R 4.2.0) #> fastmap 1.1.0 20210125 [1] CRAN (R 4.2.0) #> forcats * 0.5.1 20210127 [1] CRAN (R 4.2.0) #> fs 1.5.2 20211208 [1] CRAN (R 4.2.0) #> generics 0.1.2 20220131 [1] CRAN (R 4.2.0) #> ggdist 3.1.1 20220227 [1] CRAN (R 4.2.0) #> ggplot2 * 3.3.6 20220503 [1] CRAN (R 4.2.0) #> ggridges 0.5.3 20210108 [1] CRAN (R 4.2.0) #> git2r 0.30.1 20220316 [1] CRAN (R 4.2.0) #> glue 1.6.2 20220224 [1] CRAN (R 4.2.0) #> gratia 0.7.3 20220509 [1] CRAN (R 4.2.0) #> gridExtra 2.3 20170909 [1] CRAN (R 4.2.0) #> gtable 0.3.0 20190325 [1] CRAN (R 4.2.0) #> gtools 3.9.2.1 20220523 [1] CRAN (R 4.2.0) #> haven 2.5.0 20220415 [1] CRAN (R 4.2.0) #> here 1.0.1 20201213 [1] CRAN (R 4.2.0) #> highr 0.9 20210416 [1] CRAN (R 4.2.0) #> hms 1.1.1 20210926 [1] CRAN (R 4.2.0) #> htmltools 0.5.2 20210825 [1] CRAN (R 4.2.0) #> htmlwidgets 1.5.4 20210908 [1] CRAN (R 4.2.0) #> httpuv 1.6.5 20220105 [1] CRAN (R 4.2.0) #> httr 1.4.3 20220504 [1] CRAN (R 4.2.0) #> igraph 1.3.1 20220420 [1] CRAN (R 4.2.0) #> inline 0.3.19 20210531 [1] CRAN (R 4.2.0) #> jsonlite 1.8.0 20220222 [1] CRAN (R 4.2.0) #> knitr * 1.39 20220426 [1] CRAN (R 4.2.0) #> labeling 0.4.2 20201020 [1] CRAN (R 4.2.0) #> later 1.3.0 20210818 [1] CRAN (R 4.2.0) #> lattice 0.2045 20210922 [2] CRAN (R 4.2.0) #> lifecycle 1.0.1 20210924 [1] CRAN (R 4.2.0) #> lme4 1.129 20220407 [1] CRAN (R 4.2.0) #> loo 2.5.1 20220324 [1] CRAN (R 4.2.0) #> lubridate 1.8.0 20211007 [1] CRAN (R 4.2.0) #> magrittr 2.0.3 20220330 [1] CRAN (R 4.2.0) #> markdown 1.1 20190807 [1] CRAN (R 4.2.0) #> MASS 7.356 20220323 [2] CRAN (R 4.2.0) #> Matrix 1.41 20220323 [2] CRAN (R 4.2.0) #> matrixStats 0.62.0 20220419 [1] CRAN (R 4.2.0) #> mgcv * 1.840 20220329 [2] CRAN (R 4.2.0) #> mime 0.12 20210928 [1] CRAN (R 4.2.0) #> miniUI 0.1.1.1 20180518 [1] CRAN (R 4.2.0) #> minqa 1.2.4 20141009 [1] CRAN (R 4.2.0) #> modelr 0.1.8 20200519 [1] CRAN (R 4.2.0) #> multcomp 1.419 20220426 [1] CRAN (R 4.2.0) #> munsell 0.5.0 20180612 [1] CRAN (R 4.2.0) #> mvnfast 0.2.7 20210520 [1] CRAN (R 4.2.0) #> mvtnorm 1.13 20211008 [1] CRAN (R 4.2.0) #> nlme * 3.1157 20220325 [2] CRAN (R 4.2.0) #> nloptr 2.0.2 20220519 [1] CRAN (R 4.2.0) #> patchwork * 1.1.1 20201217 [1] CRAN (R 4.2.0) #> pillar 1.7.0 20220201 [1] CRAN (R 4.2.0) #> pkgbuild 1.3.1 20211220 [1] CRAN (R 4.2.0) #> pkgconfig 2.0.3 20190922 [1] CRAN (R 4.2.0) #> plyr 1.8.7 20220324 [1] CRAN (R 4.2.0) #> posterior 1.2.1 20220307 [1] CRAN (R 4.2.0) #> prettyunits 1.1.1 20200124 [1] CRAN (R 4.2.0) #> processx 3.5.3 20220325 [1] CRAN (R 4.2.0) #> promises 1.2.0.1 20210211 [1] CRAN (R 4.2.0) #> ps 1.7.0 20220423 [1] CRAN (R 4.2.0) #> purrr * 0.3.4 20200417 [1] CRAN (R 4.2.0) #> R6 2.5.1 20210819 [1] CRAN (R 4.2.0) #> ragg 1.2.2 20220221 [1] CRAN (R 4.2.0) #> Rcpp * 1.0.8.3 20220317 [1] CRAN (R 4.2.0) #> D RcppParallel 5.1.5 20220105 [1] CRAN (R 4.2.0) #> readr * 2.1.2 20220130 [1] CRAN (R 4.2.0) #> readxl 1.4.0 20220328 [1] CRAN (R 4.2.0) #> reprex 2.0.1 20210805 [1] CRAN (R 4.2.0) #> reshape2 1.4.4 20200409 [1] CRAN (R 4.2.0) #> rlang 1.0.2 20220304 [1] CRAN (R 4.2.0) #> rprojroot 2.0.3 20220402 [1] CRAN (R 4.2.0) #> rstan 2.21.5 20220411 [1] CRAN (R 4.2.0) #> rstanarm 2.21.3 20220409 [1] CRAN (R 4.2.0) #> rstantools 2.2.0 20220408 [1] CRAN (R 4.2.0) #> rstudioapi 0.13 20201112 [1] CRAN (R 4.2.0) #> rvest 1.0.2 20211016 [1] CRAN (R 4.2.0) #> sandwich 3.01 20210518 [1] CRAN (R 4.2.0) #> scales 1.2.0 20220413 [1] CRAN (R 4.2.0) #> sessioninfo 1.2.2 20211206 [1] CRAN (R 4.2.0) #> shiny 1.7.1 20211002 [1] CRAN (R 4.2.0) #> shinyjs 2.1.0 20211223 [1] CRAN (R 4.2.0) #> shinystan 2.6.0 20220303 [1] CRAN (R 4.2.0) #> shinythemes 1.2.0 20210125 [1] CRAN (R 4.2.0) #> StanHeaders 2.21.07 20201217 [1] CRAN (R 4.2.0) #> stringi 1.7.6 20211129 [1] CRAN (R 4.2.0) #> stringr * 1.4.0 20190210 [1] CRAN (R 4.2.0) #> survival 3.31 20220303 [2] CRAN (R 4.2.0) #> svUnit 1.0.6 20210419 [1] CRAN (R 4.2.0) #> systemfonts 1.0.4 20220211 [1] CRAN (R 4.2.0) #> tensorA 0.36.2 20201119 [1] CRAN (R 4.2.0) #> textshaping 0.3.6 20211013 [1] CRAN (R 4.2.0) #> TH.data 1.11 20220426 [1] CRAN (R 4.2.0) #> threejs 0.3.3 20200121 [1] CRAN (R 4.2.0) #> tibble * 3.1.7 20220503 [1] CRAN (R 4.2.0) #> tidybayes 3.0.2 20220105 [1] CRAN (R 4.2.0) #> tidyr * 1.2.0 20220201 [1] CRAN (R 4.2.0) #> tidyselect 1.1.2 20220221 [1] CRAN (R 4.2.0) #> tidyverse * 1.3.1 20210415 [1] CRAN (R 4.2.0) #> tjmisc 0.0.0.9000 20220321 [1] Github (tjmahr/tjmisc@6724405) #> tzdb 0.3.0 20220328 [1] CRAN (R 4.2.0) #> utf8 1.2.2 20210724 [1] CRAN (R 4.2.0) #> vctrs 0.4.1 20220413 [1] CRAN (R 4.2.0) #> withr 2.5.0 20220303 [1] CRAN (R 4.2.0) #> xfun 0.31 20220510 [1] CRAN (R 4.2.0) #> xml2 1.3.3 20211130 [1] CRAN (R 4.2.0) #> xtable 1.84 20190421 [1] CRAN (R 4.2.0) #> xts 0.12.1 20200909 [1] CRAN (R 4.2.0) #> zoo 1.810 20220415 [1] CRAN (R 4.2.0) #> #> [1] C:/Users/Tristan/AppData/Local/R/winlibrary/4.2 #> [2] C:/Program Files/R/R4.2.0/library #> #> D ── DLL MD5 mismatch, broken installation. #> #> ──────────────────────────────────────────────────────────────────────────────
Leave a comment
